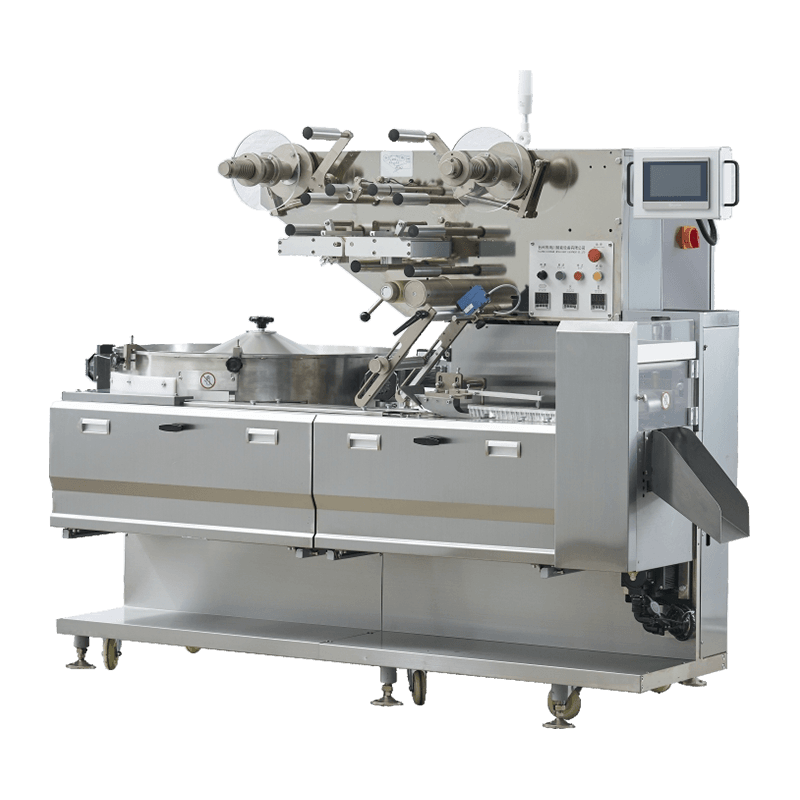

    高速智能枕式包装机（HC-ZT1500）

    高速智能枕式包装机（HC-ZT1500）

产品概述

The High-Speed Horizontal Flow Wrapper is a high-speed flow wrapping machine for continuous packaging of solid food products with regular shapes. It forms heat-sealed pillow packs from roll film and is suitable for round, disc-shaped, spherical, square, rectangular, oval, oblong, cylindrical, and other regularly shaped products.

The machine is mainly used for candy, confectionery, and other solid food products requiring continuous horizontal packaging. Its full-servo control system supports smooth machine operation, while the large product feeding tray provides a stable feeding area for continuous product supply.

With a packaging speed of up to 1,500 packages/min, the High-Speed Horizontal Flow Wrapper is suitable for high-output packaging applications. Individual machine sections can be operated separately for convenient adjustment and servicing, while an automatic film splicing system is available for continuous production without stopping the machine for film changes.

高速智能枕式包装机（HC-ZT1500）

Technical Specifications

Model HC‑ZT1500
Packaging Speed 50–1,500 packages/min
Product Shape Round/disc, spherical, square, rectangular, oval, oblong, cylindrical, and other regular shapes
Finished Bag Length 45–80 mm
Wrapping Material OPP, CPP, aluminized PET film, aluminum‑plastic laminates, paper‑plastic laminates, and other heat‑sealable single‑layer or laminated materials
Total Weight 920 kg
Total Power 5.5 kW
Power Supply 220 V, 50 Hz
Dimensions 2,450 × 1,300 × 1,670 mm
Certification CE Approved

Delivery & After-Sales Support

Standard machines

 7–10 working days after deposit

Customized machines

 1–3 months depending on solution complexity

Production inspection

 Customers are notified after completion for inspection before shipment

Packaging

 Wooden-case packing

Logistics

 Shipping arrangements can be provided; freight is paid by the customer

Installation

 Installation guidance and commissioning support

Training

 Operator training, changeover, parameter setting, and daily maintenance guidance

Technical support

 Remote technical support after installation

Spare parts

 Spare and wear parts supply

Warranty

 12-month complete-machine warranty from the acceptance date, subject to applicable warranty terms and exclusions
联系我们
上一篇：高速智能枕式包装机（HC-ZT1200）下一篇：高速智能斜盘理料包装机
应用领域

The Horizontal Flow Wrapper is suitable for high-speed pillow-pack packaging of solid products with regular shapes.

Typical applications include:

  1. Round and disc-shaped confectionery
  2. Spherical products
  3. Square products
  4. Rectangular products
  5. Oval products
  6. Oblong products
  7. Cylindrical products
  8. Candy and confectionery
  9. Other regularly shaped solid food products

The horizontal flow wrapping process is suitable for applications requiring continuous product feeding, film forming, heat sealing, cutting, and finished-pack discharge.

For candy and confectionery manufacturers, the machine can be used as a continuous Candy Packaging Machine or Confectionery Packaging Machine for individual product wrapping.

产品特点 定制能力 OEM/ODM/OBM 常问问题

Key Features

High-speed horizontal flow wrapping – Packaging speed up to 1,500 packages/min, depending on product characteristics, package format, and operating conditions.

Full-servo control system – Supports smooth machine operation and controlled movement of the main transmission.

Large product feeding tray – Provides a suitable feeding area for continuous product supply.

Independent machine operation – Individual machine sections can be operated separately for adjustment, troubleshooting, and servicing.

Dual film roll holders – Provides two film roll positions for packaging film handling.

Optional automatic film splicing – Enables film changes without stopping the machine when this option is configured.

Optional automatic feeding hopper – Available according to product and feeding requirements.

Optional stainless steel machine enclosure – Can be supplied according to customer requirements.

Heat-sealed pillow packaging – Supports heat-sealable single-layer and laminated packaging materials.

The High-Speed Horizontal Flow Wrapper uses a continuous horizontal packaging process for product feeding, film forming, sealing, cutting, and finished-pack discharge.

Customization

The machine can be configured according to product, packaging, and production-line requirements, including:

  • Automatic feeding hopper
  • Automatic film splicing system
  • Stainless steel machine enclosure
  • Product detection and reject devices
  • Counting and production statistics modules
  • Feeding system configuration according to product requirements
  • Cutting knives and forming units according to product and package dimensions
  • Customized touchscreen interface and control functions
  • Multiple recipe storage
  • Production-line connection and equipment interconnection
  • Electrical component brands

For quotation, please provide the product type, dimensions and shape, product photos or drawings if available, target packaging speed, packaging film and package requirements, coding or printing requirements, nitrogen filling or air evacuation requirements, installation space, and any upstream or downstream equipment to be connected.

OEM, ODM & OBM Services

We provide OEM, ODM, and OBM services for food packaging machinery and packaging automation projects.

OEM services support manufacturing based on customer-specified machine requirements, configurations, and production conditions.

ODM services cover equipment development and engineering based on the customer's product characteristics, packaging process, and automation requirements.

OBM services support customers who require packaging machinery manufactured under their own brand and commercial specifications.

Our manufacturing capabilities cover R&D, equipment design, sheet-metal fabrication, electrical control integration, machine assembly, testing, and complete-machine commissioning. We support both individual machine orders and customized packaging equipment projects.

FAQ

1. What products can this Horizontal Flow Wrapper handle?

It is mainly suitable for solid products with regular shapes, including round, spherical, square, rectangular, oval, oblong, and cylindrical products. Typical applications include candy and confectionery.

2. What is the maximum packaging speed?

The maximum specified packaging speed is 1,500 packages/min. Actual production speed depends on the product, package format, film, and operating conditions.

3. What packaging materials can be used?

The machine can use OPP, CPP, aluminized PET film, aluminum-plastic laminates, paper-plastic laminates, and other heat-sealable single-layer or laminated materials, subject to packaging requirements.

4. Can an automatic feeding system be added?

Yes. An automatic feeding hopper and other suitable feeding configurations can be supplied according to the product and production requirements.

5. Can the packaging film be changed without stopping the machine?

An automatic film splicing system is available as an option for continuous film changeover without stopping the machine.

6. Can the High-Speed Horizontal Flow Wrapper be integrated into an existing packaging line?

Yes. The machine can be connected with upstream and downstream equipment according to the production-line layout and automation requirements.

7. Is this a Food Packaging Machine for continuous production?

Yes. Its horizontal flow wrapping process is intended for continuous packaging of suitable solid food products, including candy and confectionery.
