  • HC‑ZS300

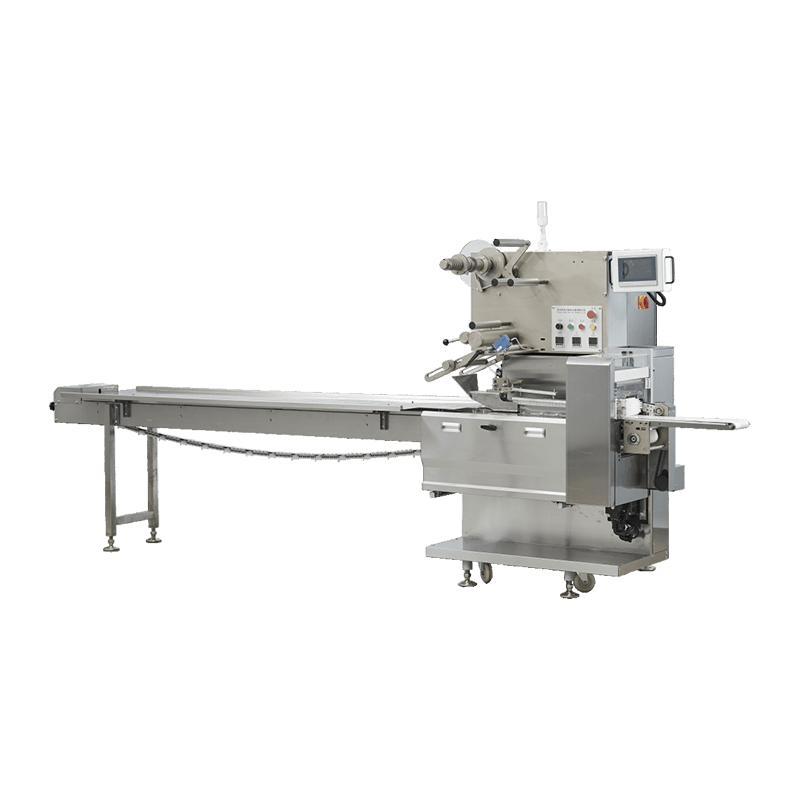

    多功能智能枕式包装机

    多功能智能枕式包装机

产品概述

The Multi-Function Pillow Packing Machine is a horizontal flow wrapping machine for continuous pillow-pack packaging of solid products in different shapes and sizes. It uses roll film to form, seal, and cut individual packs, making it suitable for food, pharmaceutical, daily-use, and selected industrial products.

The Multi-Function Pillow Packing Machine uses a five-servo touchscreen control system for coordinated operation and straightforward parameter adjustment. A high-precision photoelectric tracking system automatically tracks the cutting position and counts packaged products. This machine can also be configured with additional functions such as automatic coding, gas filling, automatic film splicing, and no-product/no-film stop according to the packaging process.

Its modular structure allows individual machine sections to be operated separately, which makes adjustment, troubleshooting, and servicing more convenient. The wide finished bag length range also makes this machine suitable for products with different package lengths.

多功能智能枕式包装机

Technical Specifications

Model HC‑ZS300
Packaging Speed 50–400 packages/min
Finished Bag Length 50–1,000 mm
Wrapping Material OPP, CPP, aluminized PET film, aluminum‑plastic laminates, paper‑plastic laminates, paper‑based heat‑sealable materials, and other heat‑sealable single‑layer or laminated materials
Total Weight 660 kg
Total Power 4.5 kW
Power Supply 220 V, 50 Hz
Dimensions 4,090 × 1,030 × 1,670 mm
Certification CE Approved

Delivery & After-Sales Support

Standard machines

 7–10 working days after deposit

Customized machines

 1–3 months depending on solution complexity

Production inspection

 Customers are notified after completion for inspection before shipment

Packaging

 Wooden-case packing

Logistics

 Shipping arrangements can be provided; freight is paid by the customer

Installation

 Installation guidance and commissioning support

Training

 Operator training, changeover, parameter setting, and daily maintenance guidance

Technical support

 Remote technical support after installation

Spare parts

 Spare and wear parts supply

Warranty

 12-month complete-machine warranty from the acceptance date, subject to applicable warranty terms and exclusions
联系我们
上一篇：没有其他产品下一篇：高速智能枕式包装机（HC-ZT1200）
应用领域

The Pillow Packing Machine is suitable for solid products requiring individual horizontal flow wrapping, including:

  1. Biscuits and cookies
  2. Chocolate
  3. Extra-long candy
  4. Bread and bakery products
  5. Egg yolk pies
  6. Instant noodles
  7. Ice pops
  8. Ice cream
  9. Mooncakes
  10. Selected pharmaceutical products
  11. Daily-use products
  12. Airline cutlery
  13. Hardware components

For food manufacturers, this Food Packaging Machine can be used for individual pillow-pack packaging of products with suitable shapes and dimensions. The same flow wrapping process can also be configured for selected pharmaceutical, daily-use, and hardware products where the product and packaging requirements are compatible.

产品特点 定制能力 OEM/ODM/OBM 常问问题

Key Features

Five-servo touchscreen control – Provides coordinated machine control and convenient parameter adjustment.

High-precision photoelectric tracking – Automatically tracks the cutting position for accurate package cutting.

Automatic package counting – Counts packaged products during continuous production.

Independent machine sections – Individual sections can be operated separately for adjustment and servicing.

Durable machine structure – Built for continuous packaging operation.

Automatic coding option – Coding equipment can be added according to customer requirements.

Gas filling option – Gas filling can be configured for suitable packaging applications.

Automatic film splicing option – Supports film changeover without stopping the packaging process when configured.

No-product/no-film stop function – The machine can be configured to stop when the required product or film condition is not detected.

Wide bag-length range – Finished bag length can be set from 50 to 1,000 mm according to the packaging format.

The Pillow Packing Machine can be configured with different auxiliary functions according to product characteristics, packaging requirements, and production conditions.

Customization

The machine can be configured according to the product, packaging format, and production requirements, including:

  • Automatic coding system
  • Gas filling system
  • Automatic film splicing
  • No-product/no-film stop function
  • Product detection and reject devices
  • Counting and production statistics
  • Cutting knives and forming units according to product and package dimensions
  • Customized touchscreen interface and control functions
  • Multiple recipe storage
  • Production-line connection and equipment interconnection
  • Electrical component brands

For quotation, please provide the product type, product dimensions and shape, product photos or drawings if available, target packaging speed, finished bag length, packaging film, coding requirements, gas filling requirements, installation space, and information about any upstream or downstream equipment to be connected.

OEM, ODM & OBM Services

We provide OEM, ODM, and OBM services for food packaging machinery and packaging automation projects.

OEM services support manufacturing based on customer-specified machine requirements, configurations, and production conditions.

ODM services cover equipment development and engineering based on the customer's product characteristics, packaging process, and automation requirements.

OBM services support customers who require packaging machinery manufactured under their own brand and commercial specifications.

Our manufacturing capabilities cover R&D, equipment design, sheet-metal fabrication, electrical control integration, machine assembly, testing, and complete-machine commissioning. We support both individual machine orders and customized packaging equipment projects.

FAQ

1. What products can this packaging machine handle?

It can package suitable solid products such as biscuits, chocolate, extra-long candy, bread, egg yolk pies, instant noodles, ice pops, ice cream, mooncakes, and selected non-food products.

2. What is the maximum packaging speed?

The specified packaging speed is 50–400 packages/min. Actual production speed depends on the product, package dimensions, film, feeding method, and operating conditions.

3. What does the photoelectric tracking system do?

The high-precision photoelectric tracking system tracks the cutting position according to the packaging mark and supports automatic package counting during operation.

4. Can additional functions be added?

Yes. Automatic coding, gas filling, automatic film splicing, and no-product/no-film stop functions can be configured according to the packaging process.

5. Can this Flow Wrapper handle different bag lengths?

Yes. The specified finished bag length range is 50–1,000 mm. The suitable setting depends on the product dimensions and package format.

6. Can the Multi-Function Pillow Packing Machine be integrated into an existing line?

Yes. Production-line connection can be configured according to the upstream and downstream equipment, product flow, and available installation space.
